Customized River Sand Pump 28inch Cutter Suction Dreder with Anchor Boom 1.5m Draught

Product Categories

Cutter Suction Dredger [842]
Small Cutter Suction Dredger [280]
Large Cutter Suction Dredger [333]
Medium Sized Cutter Suction Dreder [326]
Amphibious Dredger [16]
Jet Suction Dredger [101]
Wheel Bucket Dredger [148]
Trailing Suction Hopper Dredger [110]
River Mining Machinery [238]
Chain Bucket Mining Dredger [73]
Chain Bucket Sand Gold Dredger [105]
Land Mining Machinery [111]
Multi Function Service Working Boat [47]
Sand Transportation Ship [113]
Sand Washing Machine [29]
River Clean Machinery [100]
Sand Pump [50]
Cutter Suction Dreger Pipe [99]

Shandong Jinrui Shipbuilding Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Customized River Sand Pump 28inch Cutter Suction Dreder with Anchor Boom 1.5m Draught

Model NO. : QHCSD-306

Slot Type : CTS

Customized : Customized

Condition : New

Warranty : 2year

After-sales Service : Lifelong

Power : Cummins Diesel Engine

Hydraulic System : Rexroth

Water Flow : 7000 Cubic Meter

Capacity : 1400 M3

Dredging Depth : 18m

Discharge Distance : 1500m

Total Length : 46m

Discharge Pipe Diameter : 700mm

Cutter Head Diameter : 2400mm

Draught : 1.5m

Displacement : 447t

Total Weight : 360t

Main Engine Power : 1838kw

Auxiliary Engine Power : 736kw

Total Fuel Consmption : 445L

Transport Package : Canvas

Specification : 28 inch water flow 7000m3

Trademark : Set Sail

Origin : Qingzhou City Shandong Province China

HS Code : 8905100000

Supply Ability : 2500set /Year

Package Size : 1900.00cm * 380.00cm * 250.00cm

Package Gross Weight : 68000.000kg

Lead Time : 60 days (1 - 1 Sets) To be negotiated ( > 1 Sets)

Type : Cutter Suction Dredger

Power Type : Diesel

Cyclone Type : Hydrocyclone

Samples : US$ 10000/Set 1 Set(Min.Order) |

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

: Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Place of Origin : China

Certification : ISO 9000, ISO 14001，ISO 20000, ISO 14064, LEED, ISO 10012, ISO 17025

MOQ : 1 set

Price : Negotiable

Packaging Details : Container

Delivery Time : Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month

Payment Terms : LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram, Cash

Contact Now

River sand pump 28inch cutter suction dreder with anchor boom

Our cutter suction dredger has self propell and non self propell .moving type cutter suction dredger adopts structure of dismountable and box .it equiped swing winch cutter head ladder lifting device .spud .and deck crean so on .it is widely used in digging sand .river dredging .channel maintenance and widening and port construction so on .

Best parts will be used for the dredgers, like world famous Cummins engines, Shijiazhuang pumps, Hangzhou gearboxes, Simens PLC control system.

Hydraulic system is one of the most important parts of cutter suction dredgers. The cutter head, ladder winch, swing winches, spud or spud carriage are driven by hydraulic motors for higher efficiency and durability. Reputed brands are used for the other hydraulic parts like hydraulic pipes, hydraulic pumps, hydraulic valves.

Optional Device:

1) Booster Pump Station;

2) Spud Carriage;

3) Submersible Pump;

4) Bucket Wheel Cutter;

5) Anchor Boom and Anchor Winch;

6) WorkBoat/Tug Boat;

7) Discharge Pipeline-HDPE Pipe, Rubber Hose, Floaters, Steel Pipe

8) others based on buyer's need

28inch cutter suction dredger basic diameter :

Total length	46m
Hull size	3510.22.7m
Discharge pipe diameter	700mm
Water flow	7000m3/h
solid capacity	1050m3-1400m3
Discharge distance	1500m
Cutter head diameter	2400mm
Cutter head power	450kw
Draught	1.5m
Displacement	447ton
Total weight	360ton
Main engine power	Cummins 2427kw
Auxiliary engine power	Cummins 736kw
Total fuel consumption	547 litre
Hydraulic control system	Rexroth
Electric control system	Siemens PLC

Set Sail dredger in the foreign:
Set Sail dredging machines have been exported to about 60 countries in Southeast Asia, South Asia, Africa, and South America.

Malaysia Bangladesh Nigeria

Set Sail cutter suction dredger advantage :

★ Modular design:
The pontoons and main spare parts are connected by the bolts and nuts. which means the dredger can be dismantled in the factory and mounted in the construction sites. Of course. the delivery time will be reduced a lot by containers.

★ World -class spare parts:
We use the best parts like Cummins disel engine and Simmens PLC controlling system. Shijiazhuang pump.......Also. we build a efficient system to optimize the flow the production so as to guarantee the quality and function of the dredgers.

★ Flexible in use:
The dredgers can be adapted to different circumstance like river and lake. The material like sand. stones. mud. salt can be easily sucked and discharged to the destination place.

Set Sail service :

Free dredger consultation and free product drawings
Customize dredgers based on the client's actual dredging needs
On-site visits and factory visit services provided by HID
Arrange 2-3 Set Sail senior engineer and technicians to enter the working site within 36 hours
Free professional assembly, training and operating to make sure dredger operates smoothly
1-year warranty and Lifetime technical assistance
Sign after-sales service agreement with HID clients
Offer spare parts at a discounted price
On-site parts available
Set Sail company require responsible Sales team, design team, manufacture team available 24/7 to best serve clients

Our factory and certificate :

Set Sail Dredging Equipment Machinery Co., Ltd is one of the leader manufacture dredging equipment in china .our factory covers over 40000 square meter more than 200 employees in factory. Our factory has experience more than 20 years complete research development production design testing assemble after sales service department so on . let our customers do not worry anything
Set sail expect cooperation with the worldwide customers to create the bright tomorrow

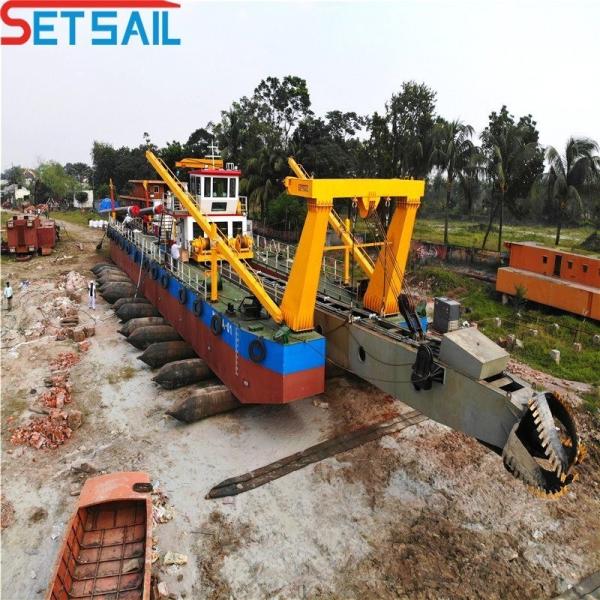

Customized River Sand Pump 28inch Cutter Suction Dreder with Anchor Boom 1.5m Draught Images
